Specialized Hydraulic Lifting Systems

Bridge Gantry Crane for Precast Girder



Design and manufacture of hydraulically actuated gantries for installation of precast bridge girders on the I-40 over the Pigeon River Gorge.

KEE Hydraulic Lift Hoist:

• 40 Ton capacity
• Design loads and safety factors per CMAA
• Lifting speed: 15 feet per minute
• Total lift stroke: 16 feet
• Lateral travel speed: 30 feet per minute
• Approximate self‐weight: 25,000 LB
• 40 Ton hook
• Model UET‐8 bogie style end trucks

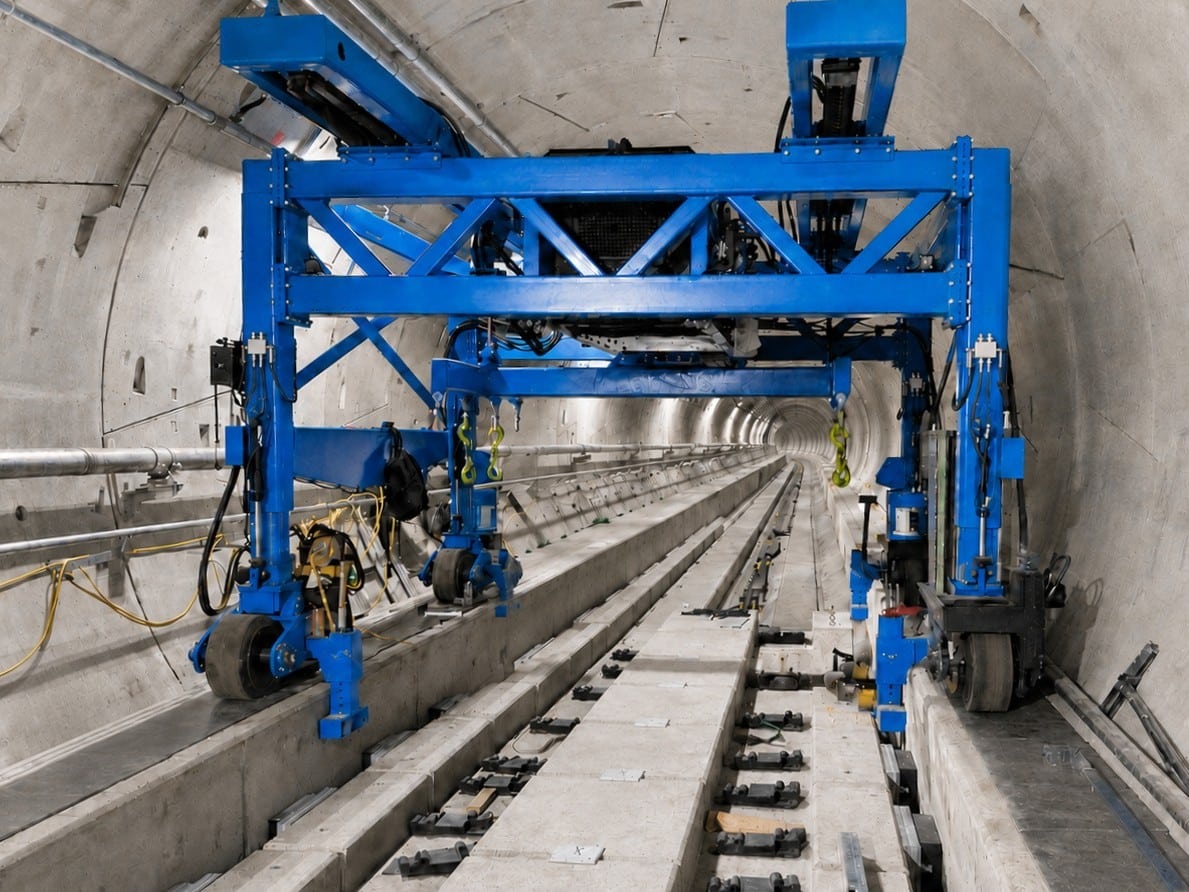

13.5 Ton Segment Gantry

Stacy & Witbeck

Design, fabrication, and commissioning of 13.5 ton rail segment gantry for use on Sound Transit Light Rail Project

Cooling Unit Gantry

Nebraska Hoist & Crane
_{Manufactured by: Nebraska Welding}

Design and delivery of cooling unit gantries
